Performance Scroll Compressor for Portable Oxygen Concentrator

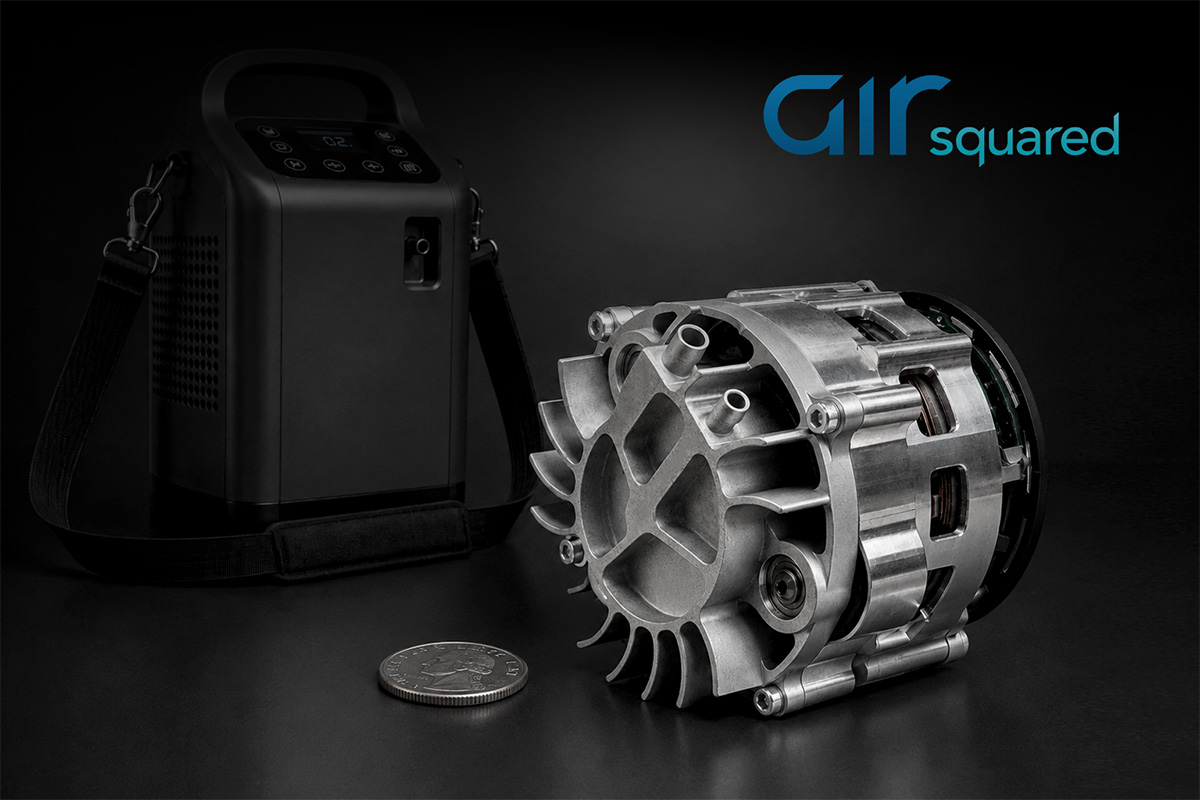

The P08H013B-BLDC scroll compressor is engineered with the future of portable oxygen concentrators in mind, delivering ultra-quiet, high-flow performance in a compact design.
Portable oxygen concentrators require an oil-free compressor that is near-silent, compact, and capable of continuous duty operation over the life of the device. Delivering up to 28 lpm, the P08H013B-BLDC scroll compressor provides OEMs headroom to increase oxygen production, while maintaining best-in-class sound levels, extended compressor life, and a compact footprint.
- The Scroll Technology Advantage. Quiet, smooth operation is central to the design. When compared to piston technology common in oxygen concentrators today, scroll technology inherently has a lower sound profile, less vibration, and minimal flow pulsation.
- Advanced Drive Configuration. Capable of speeds up to 4,900 RPM, the sensorless BLDC motor allows the design to operate efficiently over a wide range of flow requirements.
- Intelligent BLDC Control. The custom-engineered BLDC controller provides advanced control possibilities, intelligent features, and easy system integration, with no external components or complex control logic required.
- Integrated Cooling. An integrated cooling fan delivers adequate cooling where it matters most, minimizing the design footprint and extending compressor life.
Design Specifications
- Max. Pressure: 2.5 barg
- Max. Flow: 37 lpmv
- Displacement: 6.56 cm3/Rev.
- Max. Speed: 4,900 RPM
- Motor: 24V Integrated BLDC Motor and Controller
- Nominal Sound: < 35 dB(A)
- Weigh: 0.5 kg
- Cooling: Integrated Cooling Fan
- Dimensions: Ø 81 mm × 67 mm
